VDM40 Valve Driver Module

VDM 40 Valve Driver Module

VDM40

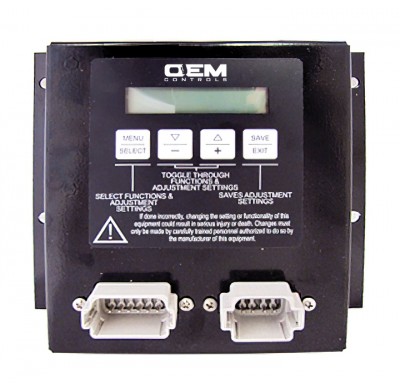

The larger VDM40 features a Human Machine Interface (HMI) which allows you to adjust the functionality with the 4 button membrane keypad and view each through the LCD display

  • Power Supply Voltage Range 10-32V
  • Frequency from 40-250 Hz
  • Max Current Output up to 2.5 amps
  • Minimum coil resistance of 4 Ohms
  • 8 analog or digital inputs, 8 PWM current regulated outputs

vdm10_40

Click image to view / download / print
