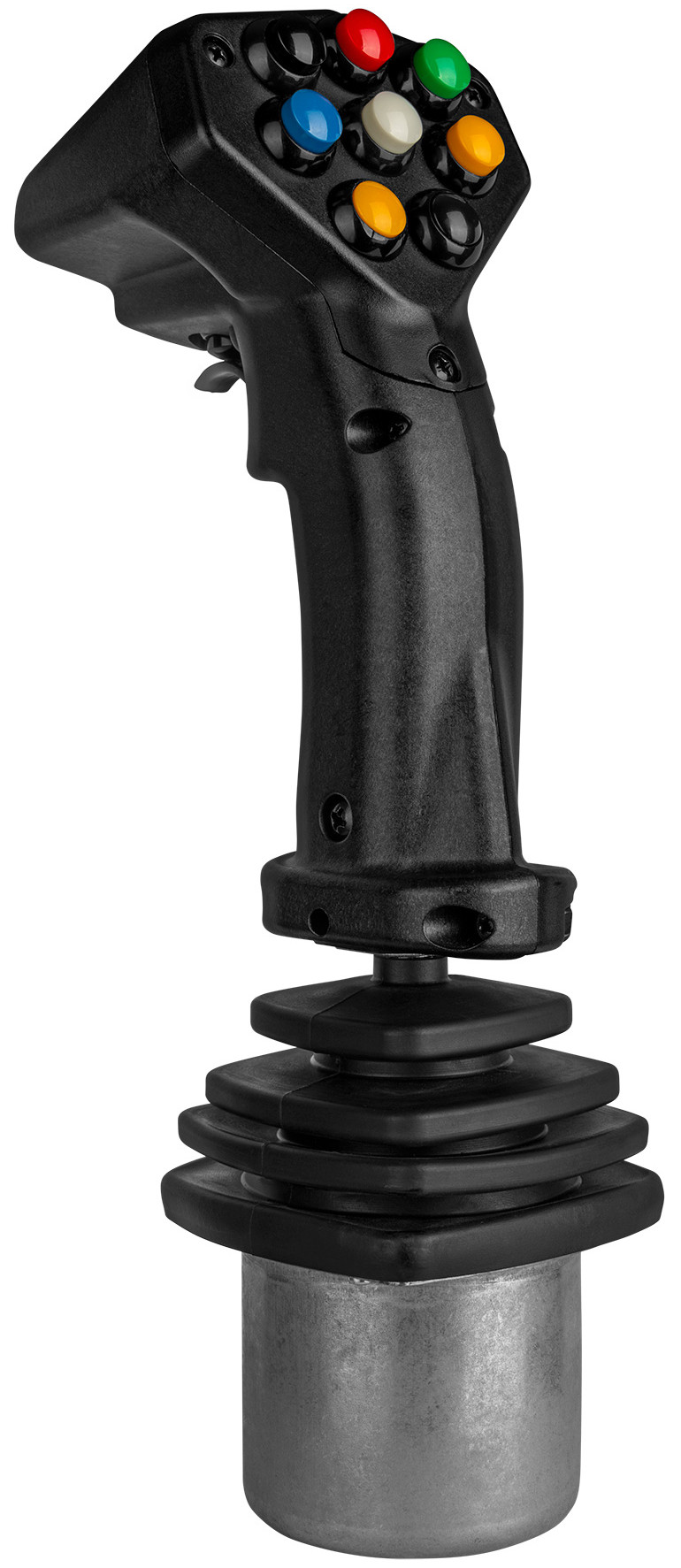

JS9 Multi-Axis Industrial Controller
Programmable Dual-Axis Control with Contactless Hall-Effect Sensing
The JS9 Multi-Axis Industrial Controller is a contactless industrial joystick controller designed for precise proportional control in demanding equipment environments. It is intended for use in machine-control applications where repeatable output, long service life, and flexible electrical integration are required.
Available configurations include factory-programmable proportional output, configurable digital switching points, redundant Hall-effect sensing as required, and multiple wiring interface options. The product is designed for applications requiring programmable control response, environmental protection, and stable long-term performance.
Key Features and Benefits
Feature |
Benefit |
|---|---|
| Auto-calibration | Helps maintain stable output behavior over time and simplifies setup |
| Factory programmable proportional output (0–10V) | Configurable for ratiometric or absolute control to match your electronics architecture |
| Programmable proportional curve + digital switching points | Tune “feel” and switching behavior to your machine functions (digital on/off positions relative to travel) |
| 10-bit proportional resolution | Fine, repeatable control across the lever travel |
| Environmental coating protection | Built to perform in harsh field conditions |
| Multiple wiring / connection options | Choose pigtails, connectors, or terminal strip to fit your harnessing standards |
Additional Specs & Downloads
- Proportional output: 0–10V, ratiometric or absolute (factory programmable)
- Per-axis digital outputs: additional programmable on/off positions relative to handle travel
- Power supply range: 7–30V
- Protocol options: CANopen (DS401) / J1939 configurations (availability depends on build)
- Handle travel: ±20° (center-to-full) configurations and multiple gate options (cross/single/simultaneous)
- IP rating: IP67
- Temperature rating: -40°C to +70°C
- Mechanical life: Over 6 million cycles (technical sheet also presents an 8M-cycle spec for the HJS9 catalog configuration—confirm per build)
Parameter |
Specification |
|---|---|
| Axes | Dual-axis (multi-axis controller) |
| Proportional output | 0–10V, ratiometric or absolute (factory programmable) |
| Resolution | 10-bit (800 counts total) |
| Power supply | 7–30V |
| Operating temp | -40°C to +70°C |
| Storage temp | -40°C to +90°C |
| Environmental sealing (catalog configuration) | IP67 |
| Mechanical life | Over 6 million cycles (product page) |
This technical document details JS9 mechanical options, electronics, wiring interfaces, and mounting dimensions.
 |
 |
 |
 |
FAQs
Q: What outputs can the JS9 be configured to provide?
A: The JS9 supports factory-programmable proportional output within 0–10V, configurable as ratiometric or absolute, with additional digital outputs per axis that can be set to turn on/off at defined handle positions.
Q: What makes the JS9 “contactless”?
A: The controller uses Hall-effect sensing (including redundant sensing where required) rather than mechanical potentiometers, improving durability and consistency in harsh environments.
Q: If my JS9 has a maintained center detent, what do operators need to do?
A: Inspect and test the detent before every use per the bulletin procedure; if the handle does not firmly lock in center during the checks, the unit should be returned for repair.
