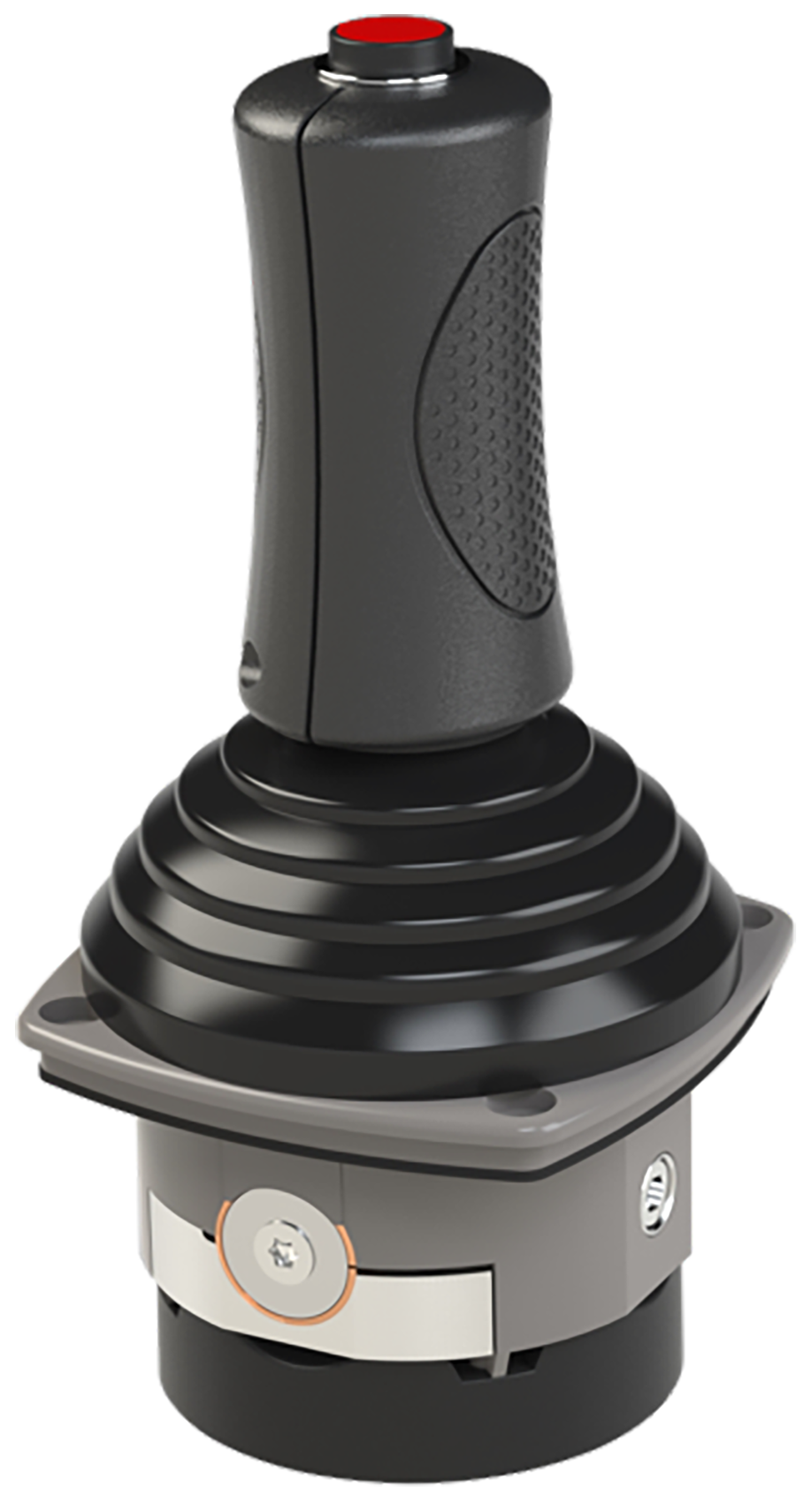

JS27 Multi-Axis Industrial Controller

Rugged Precision for Harsh Environments

The JS27 Multi-Axis Industrial Controller is a compact industrial joystick controller designed for precision control in demanding industrial and electro-hydraulic applications. It is intended for use in equipment and operator interfaces where multi-axis input, compact panel integration, and durable performance are required.

Available configurations include single-axis, dual-axis, or triple-axis control, with proportional analog, switching, and CAN-based interface options depending on build. The product is designed for applications requiring sealed construction, long mechanical life, configurable handle options, and support for demanding outdoor, marine, offshore, and off-highway environments.

Request A Quote

Key Features and Benefits

Feature	Benefit
Single-axis, dual-axis, or triple-axis configurations	Supports control of one or multiple machine functions from a single operator interface.
Proportional Analog Outputs	Provides precise, responsive electro-hydraulic motion control
Rugged Industrial Construction	Withstands vibration, shock, and continuous heavy use
Up to IP67 Environmental Sealing	Reliable operation in dust, moisture, oil, and outdoor conditions
High Mechanical Life (Up to 10M Cycles)	Supports long service life in repeated-duty applications
Configurable Handle Options	Improves operator comfort and usability across applications
Detents & Adjustable Friction	Delivers tactile feedback for repeatable, controlled movements
Compact, Panel-Mount Design	Fits easily into space-constrained operator cabs
Safety-Capable Configurations (PL d / SIL 2)	Supports safety-critical construction and off-highway applications
Modular Design	Supports configuration flexibility across different machine platforms

Download FREE Datasheet

Additional Specifications

Output & Control Options

Joystick Axes: Single-Axis / Dual-Axis / Triple-Axis
Output Types: Proportional Analog (Voltage or Current), Switching Outputs
Protocol Options: CAN Open (DS401) & CAN J1939 configurations (availability depends on build)
Electrical Interface: Multiple interface options (customizable per configuration)
Functional Safety Capability: PL d capable (EN ISO 13849) and SIL 2 capable (IEC 61508) configurations

Mechanical Design

Handle Options: Compact, Ergonomic Multi-Function, Heavy-Duty
Mechanical Options: Return-to-Center, Center/Directional Detents, Adjustable Friction
Mounting Style: Panel Mount
Housing Materials: Industrial-grade materials designed for prolonged use in harsh environments

Technical Specifications

Product Name: JS27 Multi-Axis Industrial Controller
Mechanical Life: Up to 10 million operating cycles
Environmental Protection: Up to IP67 (dust-tight and water-resistant)
Operating Temperature Range: –40 °C to +85 °C
Sealing & Protection: Designed for exposure to oil, dust, moisture, and outdoor conditions

Applications & Compliance

Typical Applications: Construction equipment, off-highway vehicles, electro-hydraulic systems
Certifications: Safety capability per industry standards (application dependent)

Need It Customized?

Mounting and Integration

The JS27 is designed for integration into panel-mounted operator interface applications where single-axis, dual-axis, or triple-axis control is required. It supports proportional analog, switching, and CAN-based interface options depending on configuration, along with configurable handle styles and mechanical operating options such as return-to-center, detents, and adjustable friction.
