FP3 Foot Pedal Controller

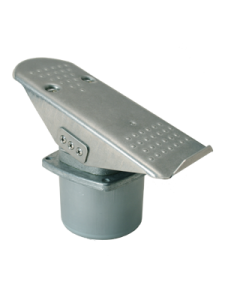

HFP3 Foot Pedal Controller

Features

  • Factory programmable output: proportional within 0-10V, 4-20mA, ratio metric, or absolute configuration
  • Short circuit and reverse polarity protection on board
  • Mechanical Life: > 1 million cycles
  • Degree of Protection: IP65 above panel
  • Operating temperature is -40°C to +70°C storage temperature is -40°C to +90°C
  • EMC (EMI, RFI and Magnetic Field) protection
  • Proven environmental coating protection
  • Power Supply: 9-30V
  • Two additional digital outputs per axis-programmable on/off position relative to handle travel (3 amps total)
  • Available with pendant wires or connector
  • Factory adjustable pedal heights and angle deflection
  • Special Capabilities: CAN bus configuration (CAN Open, J1939, Customer Specific), UFO electronics (PWM or PDC output PCB with trim pot adjustments)
New Call-to-action

Click images to view / download / print

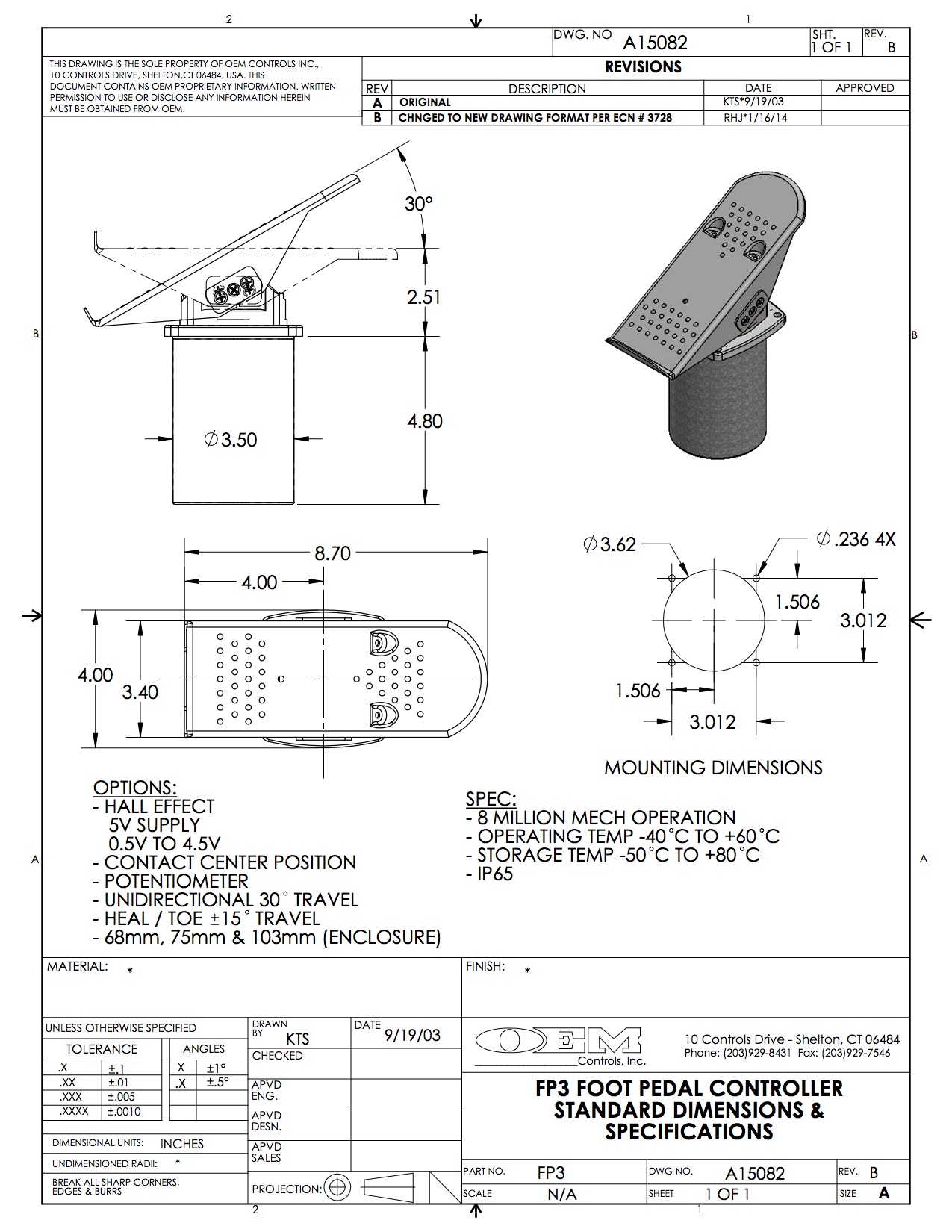

fp3mounting

Click image to view / download / print
