BT60ni Fasten Tracker
Download the Fasten Tracker App
| Specifications: | |
|---|---|
| Model No. | BT60ni (non-insulated) Tracker |
| Alarm | Audible Horn |
| Data Captured | Operation & Violations |
| Power Requirements | Host 9 to 32 VDC |
| Operating Temperature | -30° to +70° C |
| Sealing | IP65 |
| Bluetooth® Distance | 100 Yards – line of sight |
| Bluetooth® Version | 4.2 |
| Regulatory | FCC (US), IC (Canada),CE (Europe) |
| Installation Time | About 45 minutes |
| Dimensions | 5.54” x 4.75” x 2.44” |
| US Patent No. | See all patents at oemdd.com |
| Rugged Bluetooth® Data Devices | |
For Universal Installation onto Mobile Elevated Work Platforms (MEWPS)
The BT-60F-400-4KT Fasten Tracker Lanyard Attachment Monitoring System is available for all Non-Insulated MEWPS.
The System will deliver an immediate reminder warning alarm to the lift operator who is not safely attached to the designated anchor point prior to lift operation. An optional feature will log data of Lift Operator activity such as lanyard attachments, detachments, lift motion activity and deliver safety violation notifications. OEM Data Delivery can provide various access of this data through Bluetooth or also integrate into your existing Telematics Network for analysis on your laptop or cell phone.
The BT60ni (BT-60F-400-4KT) System is designed to be Universally compatible for installation with any MEWP anchor point shape or size.
Featuring customized length anchorage extension lanyards which position the device at just the right position for the lift operator to easily attach fall protection. Certified UL Tested and Approved to Requirements of ANSI/ASSP Z359.18-2017.

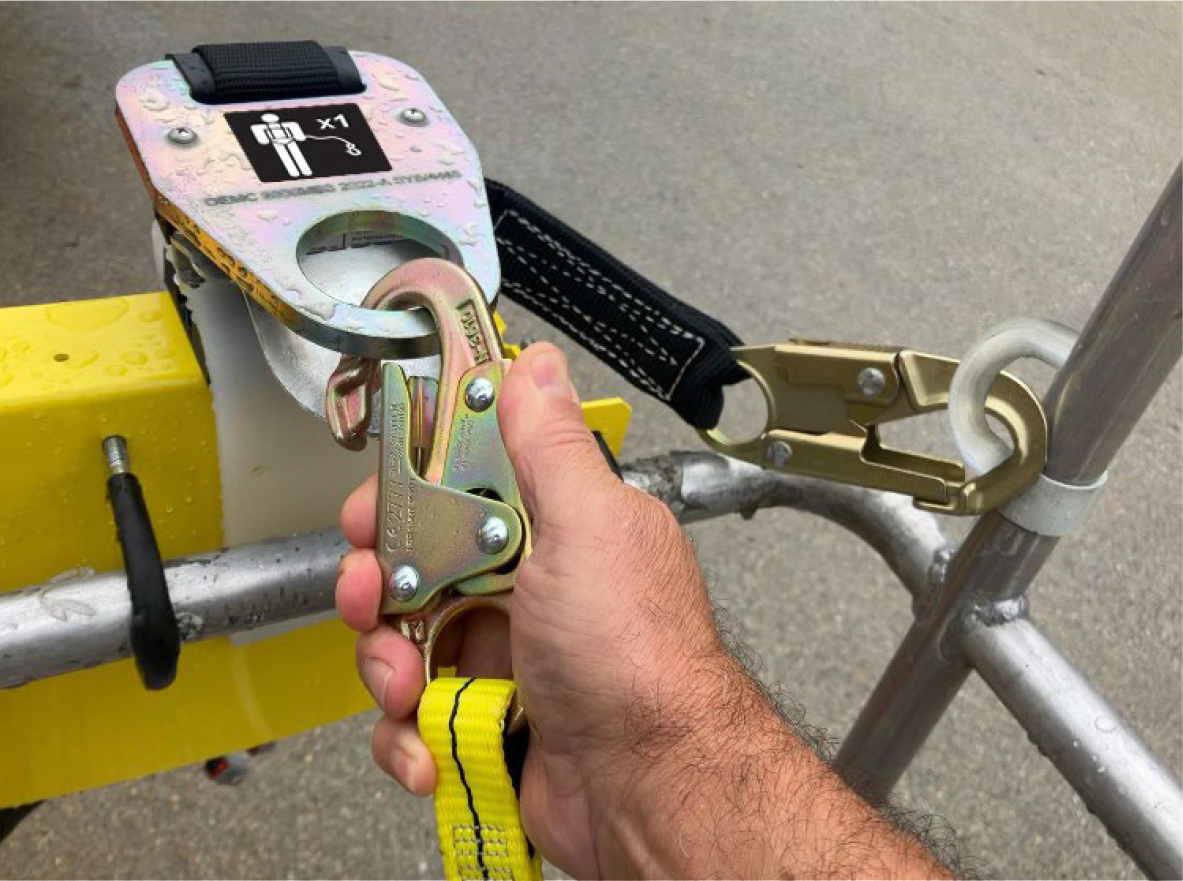

- Verifies safety lanyard attachment to anchor point.
- Delivers warning alarm reminder if operator is not attached with PPE prior to lift operation.
- Optional feature logs lift operator fall protection activity and will send safety violation notifications.
- Does not impede or interrupt factory designed functionality of aerial lift/MEWP.
- Maintains 100% factory designed reliability of aerial lift/MEWP.
- Easy 45-minute installation. No drilling or permanent mounting necessary.
- Fasten Tracker technology is being utilized by various aerial lift manufacturers,
- MEWP Rental and aerial lift end users.
- OEM Controls Data Delivery will develop individual system with specifications in conjunction with specific anchor point configurations and the desired design features of any MEWP manufacturer.

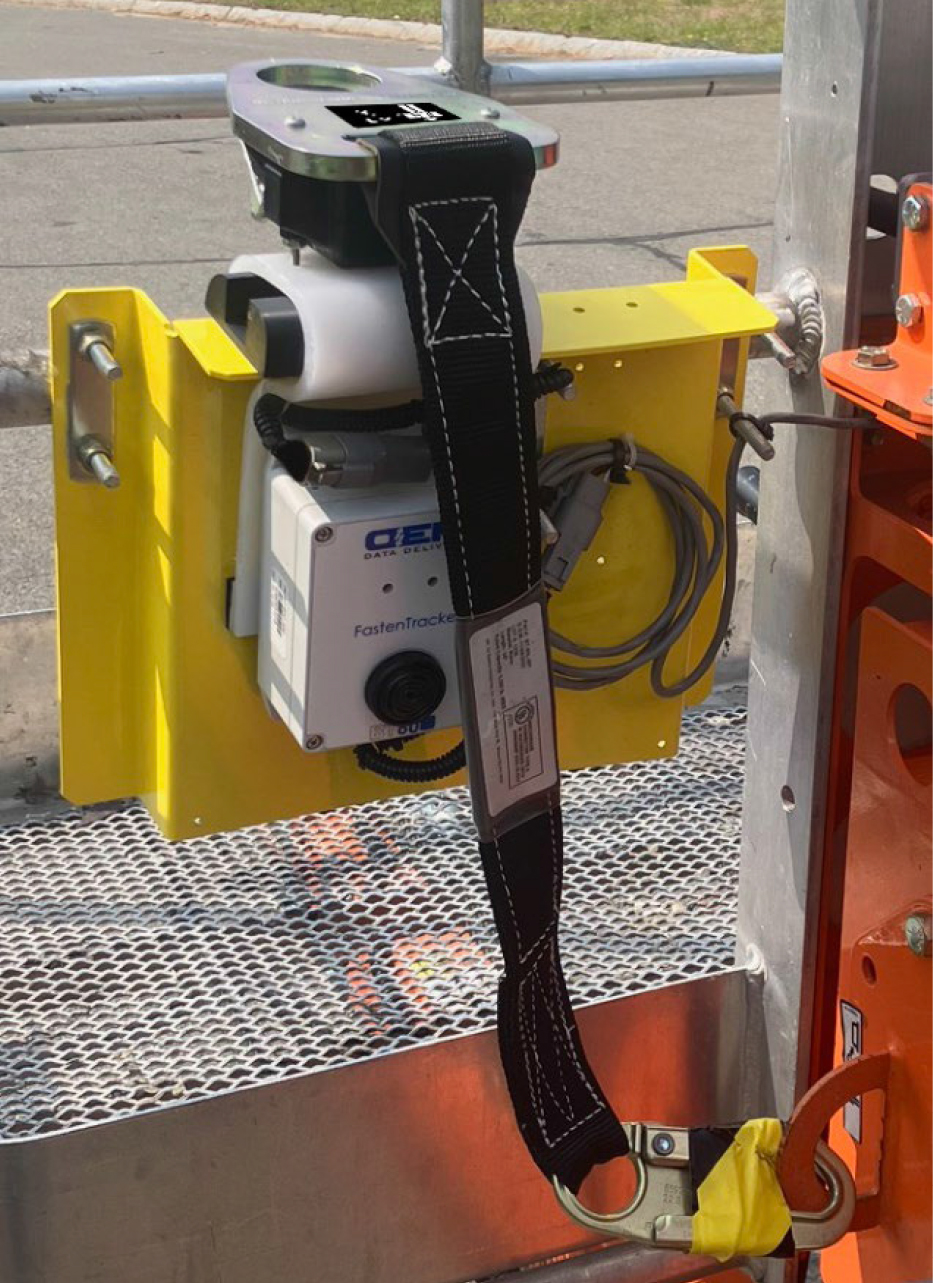

The BT60ni (non-insulated) Fasten Tracker mounts easily onto the aerial lift and utilizes power from the host vehicle.
Mounting kit for the Fasten Tracker is included.
MOUNTING BEST RESULTS:
Mount near safety lanyard attachment point on aerial lift boom.
